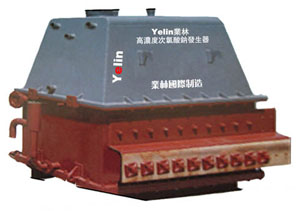

L series electrochemical high concentration sodium hypochlorite generator (Yelin 01 generator)

The manufacturing technology of this equipment is independently developed and exclusively owned by Yelin.

Execution standards:

Principle: The YL series electrochemical high concentration sodium hypochlorite generator uses diaphragm electrolysis of saturated saltwater to produce high concentration (up to 10-11%) sodium hypochlorite solution under the action of stabilizing substances.

1、 Overview

The YL series high concentration sodium hypochlorite generator is a device that produces high concentration (up to 10-11%) sodium hypochlorite solution through low-pressure diaphragm electrolysis in an electrolysis chamber after dissolving saline solution. The high concentration sodium hypochlorite disinfectant has a wide range of applications and can be diluted as a strong oxidant and disinfectant. It can be used for disinfection in the medical field, as well as for disinfecting water bodies. Its sterilization effect is good, safe and convenient. Widely used in hospital sewage treatment, swimming pool circulating water treatment engineering, reclaimed water treatment, drinking water disinfection, industrial circulating water chlorination, tableware, vegetable and fruit disinfection, bathroom and ward disinfection, cyanide containing industrial wastewater treatment; Pulp and fiber bleaching, poultry drinking water, and disinfection of livestock and poultry environments.

2、 Characteristics and Performance of YL Series Sodium Hypochlorite Generator

 1. Characteristics:

(1) Specialized anodes have high activity and long lifespan;

(2) The standardization level of equipment components is high and the interchangeability is good;

(3) Diaphragm electrolysis of saltwater, with low turbidity requirements;

(4) Specially designed cooling water, tap water backwash and hydrogen discharge system;

(5) Equipped with a softening water device, it can increase the service life of the equipment and reduce the frequency of electrode cleaning;

(6) The pipelines, valves, and fittings are all made of corrosion-resistant and well sealed new plastics;

(7) The equipment is designed to adopt semi-automatic or automatic control, and only requires regular salt and acid washing;

(8) Cleverly combined with the characteristics of chlorine dioxide equipment, it makes the performance of the equipment more reliable.

 2. Technical performance

(1) The current efficiency of the electrolytic cell is greater than 75%;

(2) DC power consumption<6kw. h/kg effective chlorine;

(3) Salt consumption<1.3kg/kg effective chlorine;

(4) Anode strengthening life>100h;

(5) The predicted lifespan of the anode is greater than 80000 hours.

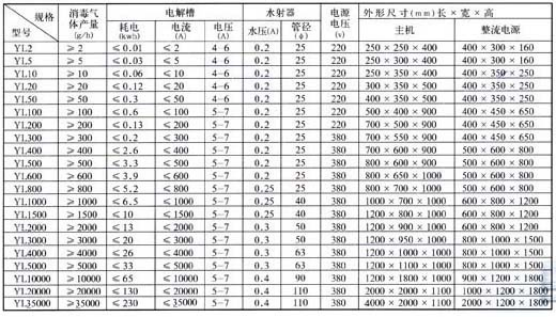

3、 Specification and model
