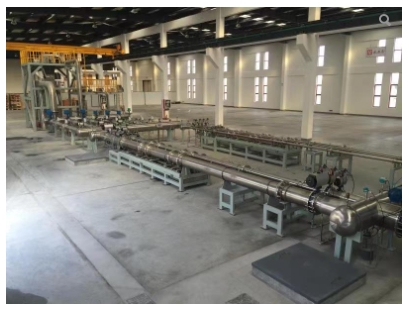

Large caliber cold and hot energy meter calibration device DN50-DN300

The ultrasonic thermometer consists of two parts: a flow sensor and a calculator. According to the requirements of the national metrological verification regulations, ultrasonic thermometers should be tested separately for two parts during the final identification, namely water flow verification and calculator verification; During factory inspection or mandatory initial inspection, total quantity inspection or component combination inspection can be carried out, which can be used to inspect the heat as a whole or separately for the flow sensor. Therefore, the ultrasonic heat meter calibration device is composed of two independent calibration devices, namely the water flow standard device and the calculator calibration device. This device is a double row combination structure, and the water pump is controlled by a frequency converter, with fine tuned valves to ensure stable water flow. Automatically collecting data from the balance, with an automatic control system and professional calibration software to ensure calibration accuracy. Achieve fast, efficient, and accurate calibration and measurement.

Product Details

TECHNICAL INDEX

Technical specifications of ultrasonic water/heat meter calibration device DN50-DN300

Equipment dimensions (length * width * height)

Equipment weight 20T

The maximum power of the equipment is 145KW

Standard table method: 0.2% (k=2) 0.1~1500m/h

Quality method: 0.2% (k=2) 0.1~1500m/h

Flow regulation range: 0.1m/h~1500m3/h

Flow stability (fluctuation coefficient):<0.5%

Gauge caliber: DN50-DN300

Types of tested flow meters: velocity flow meters (including mechanical, electromagnetic flow meters, ultrasonic flow meters), liquid volumetric flow meters, etc.

Tested traffic signal: M-bus communication/RS485 interface

Temperature measurable range: room temperature~95 ℃

Verification medium: clean water

Maximum working pressure range of the device: 0-1.6 MPa

Operating temperature of the device: room temperature

Power supply for calibration equipment: AC380V

Control mode of the device: During the calibration process, the control mode of the device is automatic calibration and manual intervention. Except for manual clamping of the tested meter, all other calibration work can be completed by computer operation.
