High frequency transformer

High frequency transformer is a power transformer with a working frequency exceeding the intermediate frequency (10kHz), mainly used as a high-frequency switching power transformer in high-frequency switching power supplies, and also used in high-frequency switching power supplies

Used as a high-frequency inverter transformer in inverter power supplies and high-frequency inverter welding machines.

Product Details

High frequency transformer is a power transformer with a working frequency exceeding the intermediate frequency (10kHz), mainly used as a high-frequency switching power transformer in high-frequency switching power supplies, and also used in high-frequency inverter power supplies and high-frequency inverter welding machines

A transformer for high-frequency inverter power supply. According to the working frequency, it can be divided into several levels: 10kHz-50kHz, 50kHz-100kHz, 100kHz-500kHz, 500kHz-1MHz, and 1MHz

Up there. When the transmission power is relatively high, IGBT is generally used as the power device. Due to the phenomenon of tail off current in IGBT, the operating frequency is relatively low; If the transmission power is relatively small, it can be used

MOSFET， The working frequency is relatively high.

High frequency transformers can be customized and produced according to parameter requirements.

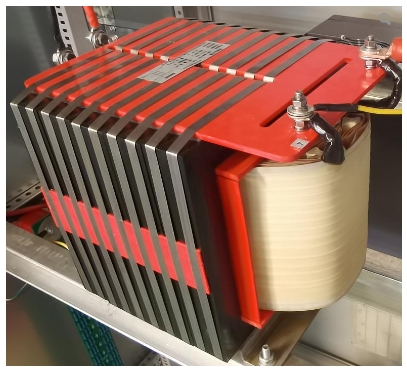

Product model: ZWCF.GPBF-38/1.759 Factory serial number: ZWPB18234

Operating frequency: 3.5~6kHz

Capacity:38kVA

Rated voltage: 450/1759V

Insulation level:H Rated current: 100/30A

Weight:48.8kg
